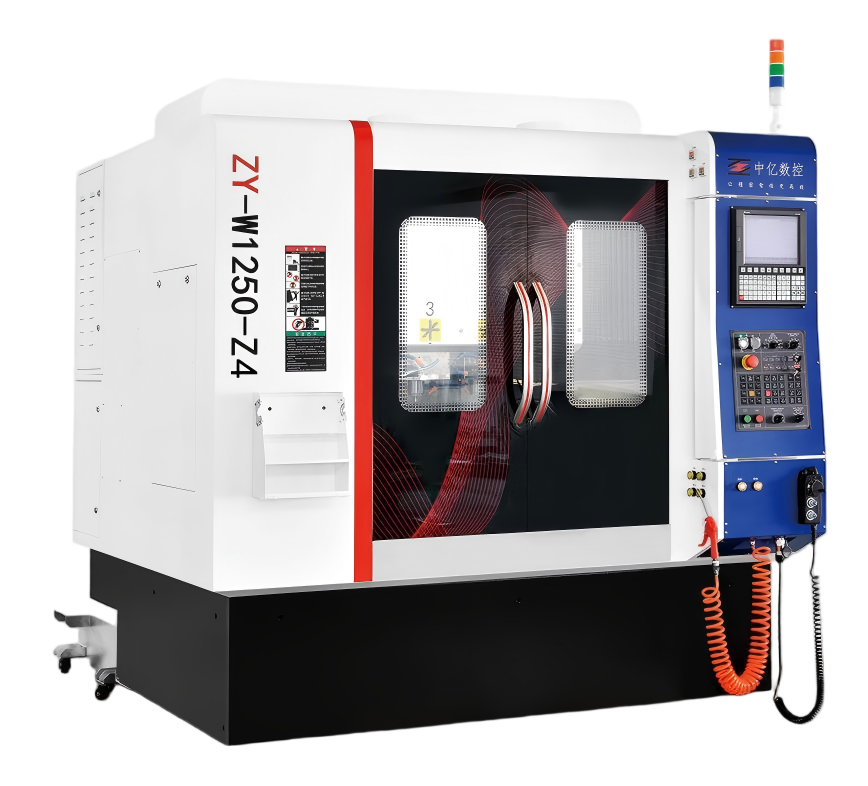

ZY-W1250-Z4
Four-Spindle CNC Precision Engraving Platform(ISO20 / ISO25 Spindle Configurations Available)
The ZY-W1250-Z4 is a granite-structure multi-spindle engraving platform designed for high-precision and high-efficiency metal machining applications.
ZY-W1250-Z4 Overview
• 4 Independent Spindles
• Working Table: 1200 × 500 mm
• Travel (X/Y/Z): 300 / 500 / 180–220 mm (Configuration Dependent)
• ISO20 (40,000 rpm) / ISO25 (36,000 rpm) Options
• Tool Magazine Capacity: 56–76 Tools (Configuration Dependent)
• Natural Granite Machine Base
• Positioning Accuracy: 0.008 mm / 300 mm
Granite Base & Frame
Natural Granite Machine Base
Machine Weight:
• ISO20: 3.8T (without water tank)
• ISO25: 4.2T (without water tank)
Overall Dimensions:
• ISO20: 2465 × 2060 × 2358 mm
• ISO25: 2505 × 2060 × 2357 mm
Multi-Spindle Layout
4 Independent Spindles
Spindle Center Distance: 300 mm
Granite Structural Platform
Heavy-Duty Stainless Steel + Painted Enclosure
Working Platform
Working Table Size: 1200 × 500 mm
T-Slot: 13 × 6 × 80 mm
Max Table Load: 150 kg
Motion & Feed System
Travel (X/Y/Z):
• ISO20: 300 / 500 / 180 mm
• ISO25: 300 / 500 / 220 mm
Rapid Speed (X/Y/Z): 15 / 15 / 15 m/min
Feed Speed: 1 – 10000 mm/min
Precision Standard
Positioning Accuracy (X/Y/Z): 0.008 mm / 300 mm
Repeatability (X/Y/Z): 0.005 mm / 300 mm
Standard: GB/T 20957.4-2007
Tool Magazine System
Y-Axis Servo Linear Tool Magazine
Tool Capacity:
• ISO20: 19T × 4 = 76 Tools
• ISO25: 14T × 4 = 56 Tools
Max Tool Diameter:
• ISO20: 25 mm
• ISO25: 29 mm
Max Tool Length: 40 mm
ISO20 vs ISO25 — Final Accurate Differences
| Specification | ISO20 Version | ISO25 Version |
|---|---|---|
| Spindle Taper | ISO20 | ISO25 |
| Max Speed | 40,000 rpm | 36,000 rpm |
| Collet | ER16 (Max 10 mm) | ER20 (Max 12 mm) |
| Spindle Power | 4.0 – 4.8 kW | 7.5 – 9 kW |
| Spindle Torque | 1.29 – 1.55 N·m | 4 – 4.8 N·m |
| Z Travel | 180 mm | 220 mm |
| Tool Capacity | 76 Tools | 56 Tools |
| Max Tool Diameter | 25 mm | 29 mm |
| Spindle Nose to Table Distance | 80 – 260 mm | 50 – 270 mm |
| Total Machine Power | 6.5 kVA | 11.5 kVA |
| Machine Weight | 3.8T | 4.2T |
