ZY-W945-Z4

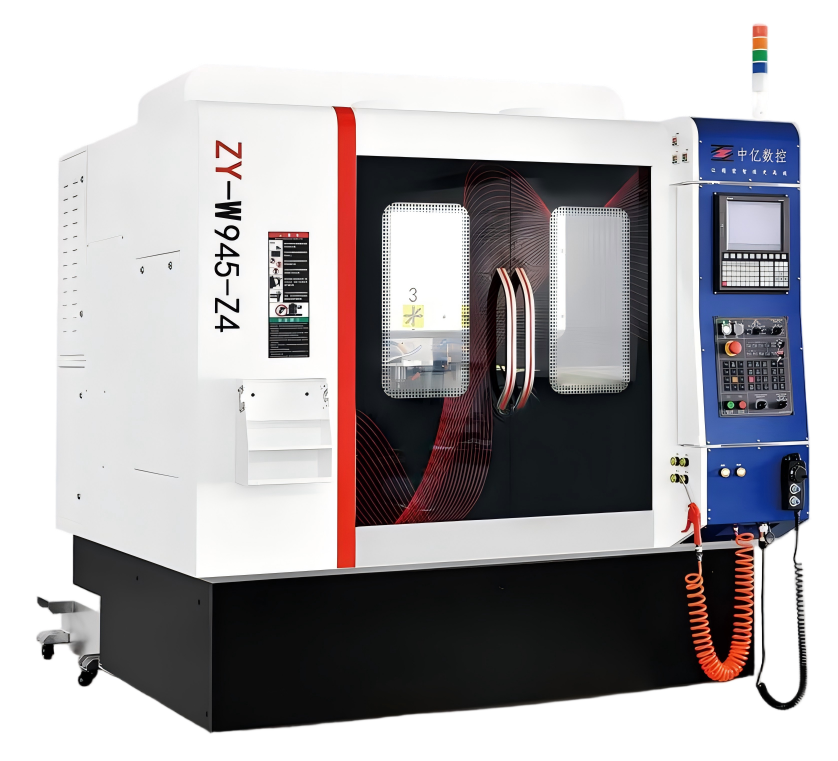

Four-Spindle CNC Precision Engraving Platform
ISO20 / T11 Spindle Configurations Available
ZY-W945-Z4 Overview
• 4 Independent Spindles
• 900 × 450 mm Working Table
• Travel (X/Y/Z): 225 / 450 / 150–180 mm (Configuration Dependent)
• ISO20 (40,000 rpm) / T11 (60,000 rpm) Spindle Options
• Positioning Accuracy: 0.008 mm / 300 mm
• Repeatability: 0.005 mm / 300 mm
• Natural Granite Machine Base
Granite Base & Frame
Natural Granite Machine Base
Machine Weight: 2.8T (without water tank)
Overall Dimensions: 2248 × 1780 × 2324 mm
Multi-Spindle Layout
4 Independent Spindles
Spindle Center Distance: 225 mm
Synchronized Multi-Spindle Machining Platform
Working Platform
Working Table: 900 × 450 mm
T-Slot: 12 × 6 × 80 mm
Max Table Load: 100–150 kg (Configuration Dependent)
Motion & Feed System
Travel: 225 mm
Y Travel: 450 mm
Z Travel: 150 mm (T11) / 180 mm (ISO20)
Rapid Speed (X/Y/Z): 30 / 30 / 30 m/min
Feed Speed: 1–10000 mm/min
Precision Standard
Positioning Accuracy: 0.008 mm / 300 mm
Repeatability: 0.005 mm / 300 mm
Standard: GB/T 20957.4-2007
Tool Magazine System
Y-Axis Servo Linear Tool Magazine
Tool Magazine Capacity:
• ISO20: 12T × 4 = 48 Tools
• T11: 15T × 4 = 60 Tools
Max Tool Length: 40 mm
ISO20 / T11 Spindle Configurations Technical Comparison
| Specification | ISO20 Version | T11 Version |
|---|---|---|
| Spindle Taper | ISO20 | T11 |
| Max Speed | 40,000 rpm | 60,000 rpm |
| Spindle Power | 4.0–4.8 kW | 1.5–2.25 kW |
| Spindle Torque | 1.29–1.55 N·m | 0.24–0.36 N·m |
| Tool Holder | ER16 (Max 10 mm) | ER11 (Max 6 mm) |
| Max Tool Diameter | 25 mm | 16 mm |
| Z Travel | 180 mm | 150 mm |
| Max Table Load | 150 kg | 100 kg |
| Tool Magazine Capacity | 48 Tools | 60 Tools |
| Spindle / Tool Holder to Table Distance | 10–190 mm | 25–205 mm |
| Total Machine Power | 6.5 kVA | 5.5 kVA |
