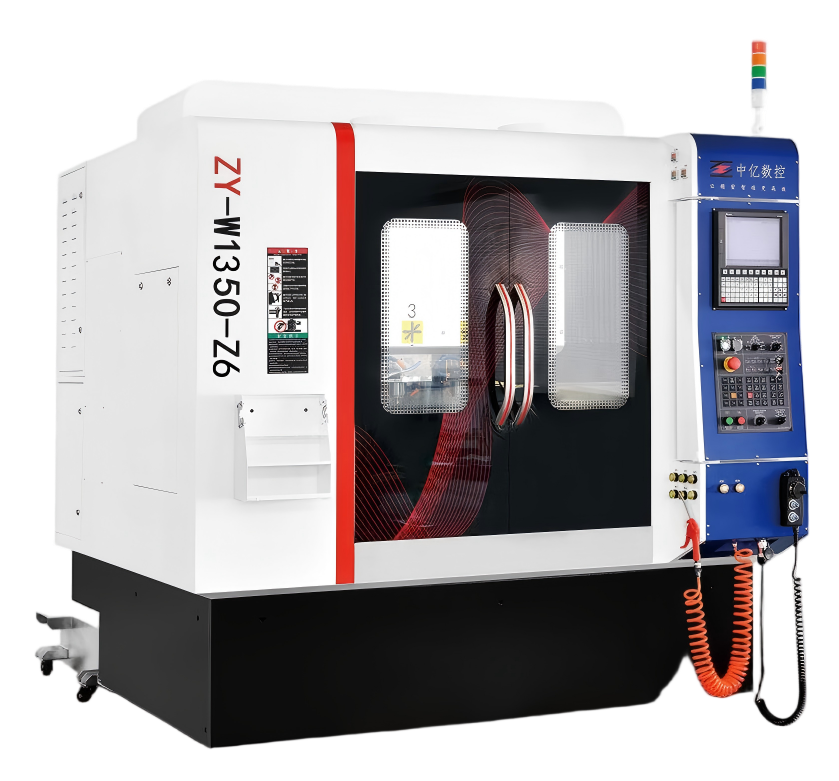

ZY-W1350-Z6
Six-Spindle CNC Engraving Machine
The ZY-W1350-Z6 is a six-spindle granite-structure engraving platform engineered for ultra-high-speed micro machining and multi-station production efficiency.
ZY-W1350-Z6 Overview
• Granite Machine Base
• 1290 × 500 mm Working Table
• 6-Spindle Configuration
• Spindle Center Distance: 215 mm
• X/Y/Z Travel: 215 / 500 / 180 mm
• Rapid Speed (X/Y/Z): 30 / 30 / 15 m/min
• Positioning Accuracy: 0.008 mm / 300 mm
• Repeatability: 0.005 mm / 300 mm
• Y-Axis Servo Linear Tool Magazine (15T × 6 = 90 Tools)
Machine Structure
• Machine Base: Granite
• Enclosure Material: Stainless Steel + Painted Sheet Metal
• Machine Weight: 4.1 T (Without Water Tank)
• Overall Dimensions: 2465 × 2060 × 2358 mm
• Leveling Pads: 6 pcs
• Water Tank Capacity: 200 L
Working Table
• Table Size: 1290 × 500 mm
• T-Slot: 13 × 6 × 80
• Maximum Load Capacity: 150 kg
Spindle Configuration
• Number of Spindles: 6
• Spindle Type: T11
• Max Speed: 60,000 rpm
• Spindle Power: 1.5 – 2.25 kW
• Spindle Torque: 0.24 – 0.36 Nm
• Tool Holder: ER11 (Max 6 mm)
• Spindle Center Distance: 215 mm
• Nose to Table Distance: 60 – 240 mm
Travel & Motion
• X/Y/Z Travel: 215 / 500 / 180 mm
• Rapid Speed (X/Y/Z): 30 / 30 / 15 m/min
• Feed Speed: 1 – 10000 mm/min
Accuracy (GB/T 20957.4-2007)
• Positioning Accuracy (X/Y/Z): 0.008 mm / 300 mm
• Repeatability (X/Y/Z): 0.005 mm / 300 mm
Tool Magazine System
• Type: Y-Axis Servo Linear Tool Magazine
• Capacity: 15T × 6 (Total 90 Tools)
• Max Tool Diameter: 16 mm
• Max Tool Length: 40 mm
Power Supply: 380 V
Total Machine Power: 7.5 KVA
Air Pressure Requirement: 6.0 – 7.5 bar
